Stanton & Partners Aviation
2008
Gulfstream G450
Highlights
| OUTSTANDING OWNERSHIP PEDIGREE | PLANEVIEW ENHANCED NAVIGATION PACKAGE |
| PROGRAM ENROLLED – ENGINES AND APU | 14 PASSENGER CONFIGURATION WITH FORWARD GALLEY |
| MANY ADDITIONAL OPTIONS | CPDLC | FANS 1/A, WAAS/LPV |
Cabin
14
06

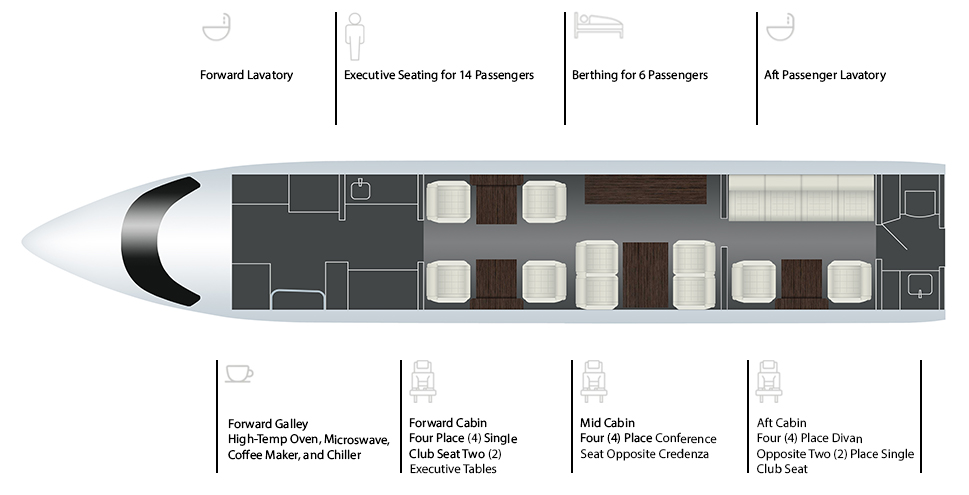

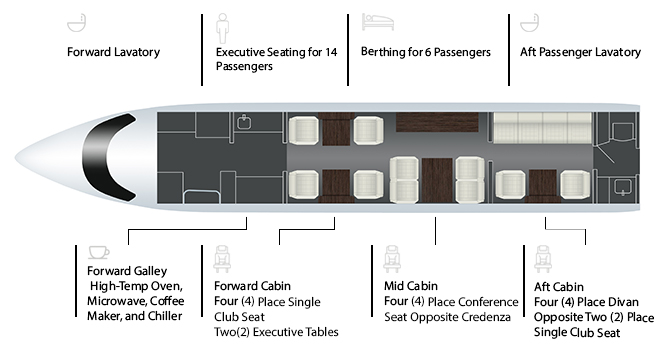

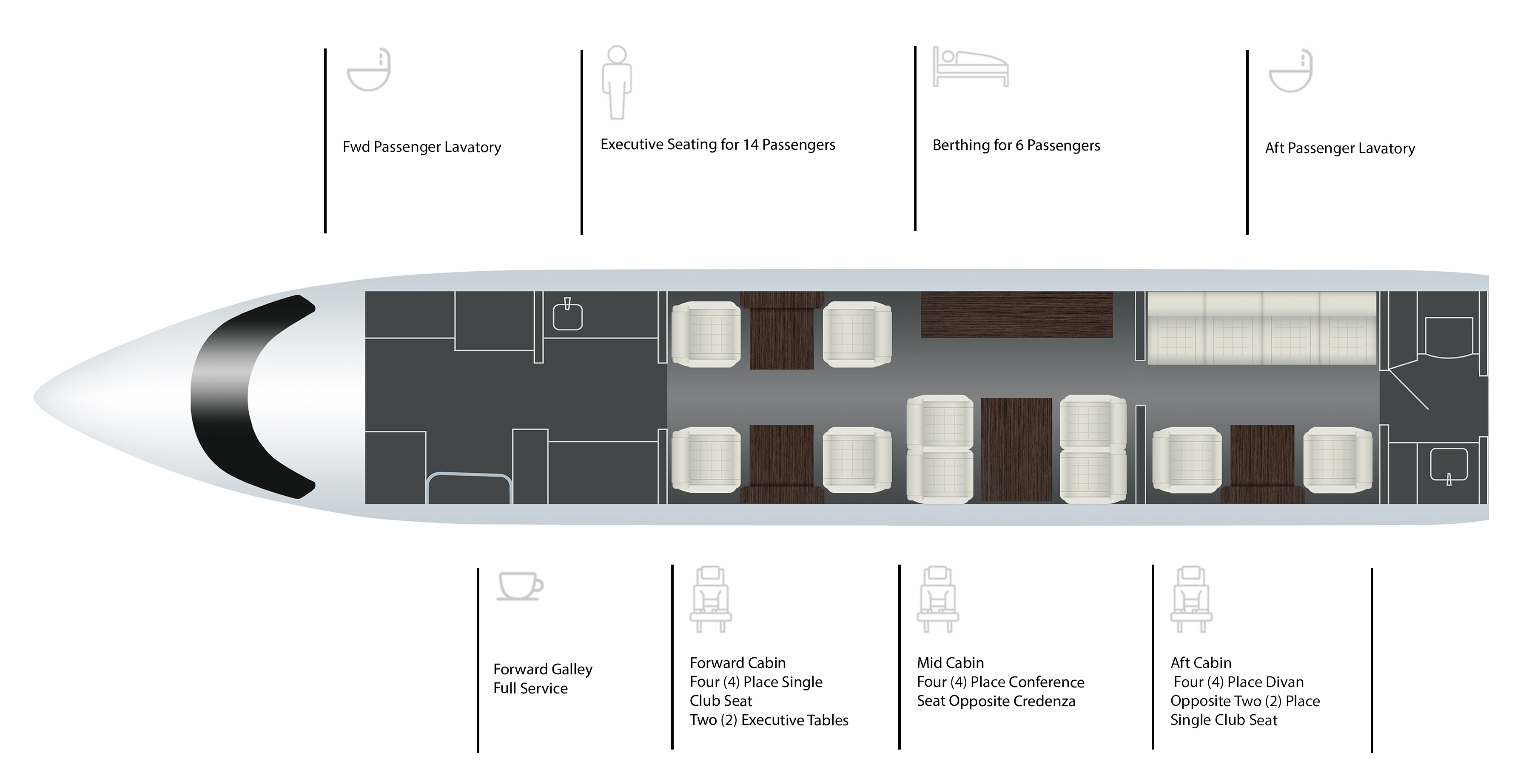

Cabin Description
| Executive Seating Capacity | Fourteen (14) Passengers |
| Cabin Berthing Capacity | Six (6) |
| Galley Location | Fwd Galley |
| Galley Equipment | High-Temp Oven, Microwave, Coffee Maker, and Chiller |
| Lavatory Location/s | Fwd & Aft Lavatory |
| Interior Age Sine New/Refurb | New Paint (2016) |
| Connectivity | AirCell Iridium Satellite Telephone System |
| In-Fligh Entertainment | Airshow 4000 |
| Cabin Zones | Three (3) |

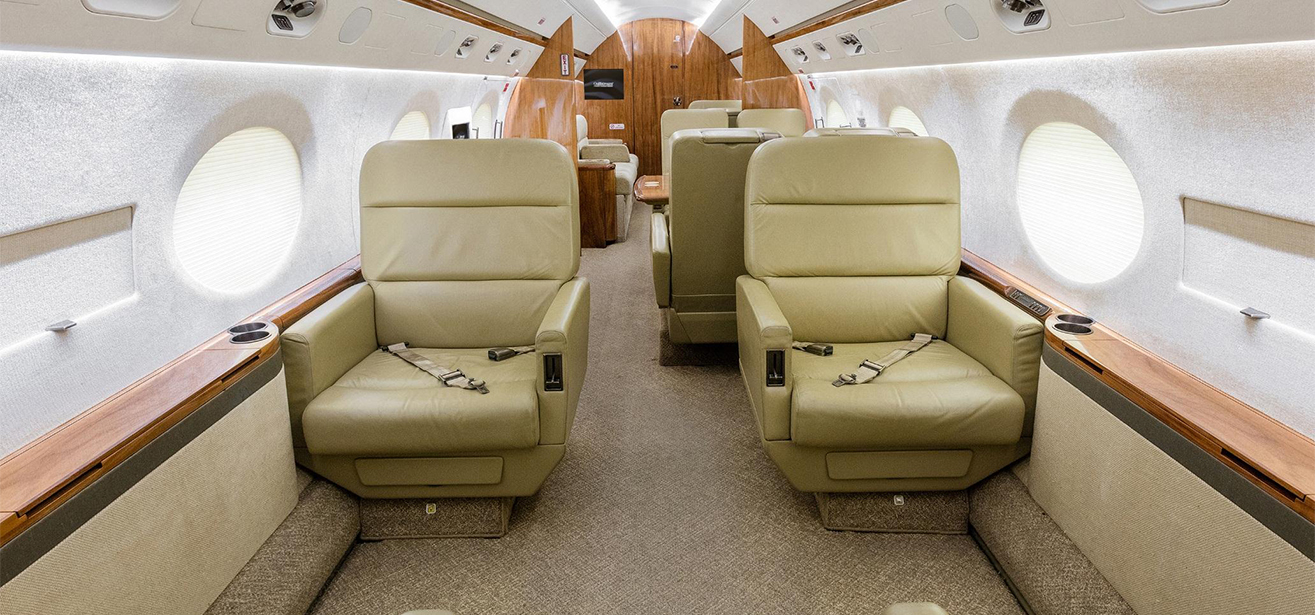

| Forward Cabin | Four (4) Single Place Club Seats |

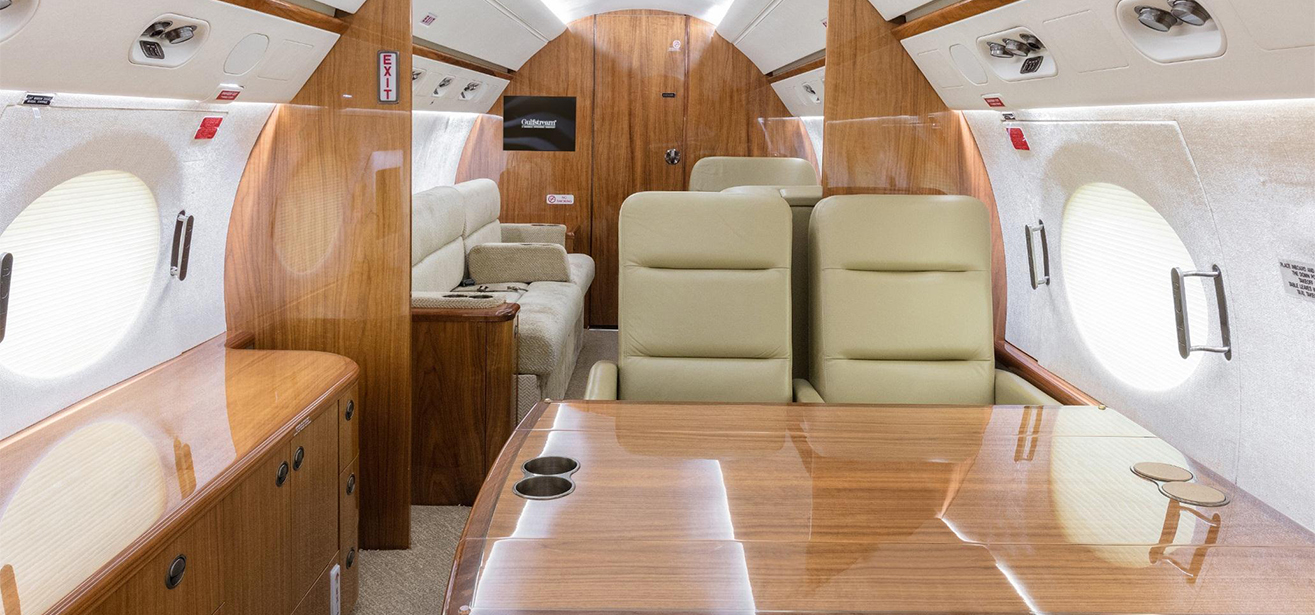

| Mid Cabin | Four (4) Place Conference Club Opposite Credenza |
| Aft Cabin | Four (4) Place Divan Opposite Two (2) Single Place Club Seat |
| Jump Seat | Yes |
| Interior Finishes | Wood Veneer Medium |
| Interior Finishes | Leather Cream Leather |
Airframe
| Total Time Since New | 4,289.2 |
| Total landings | 1,775 |
| Maintenance Tracking | MYCMP |
| Weight | |
| Basic Empty Weight | 41,935 lbs |
| Basic Operating Weight | 43,000 lbs |
| Maximum Ramp Weight | 75,000 lbs |
| Maximum Takeoff Gross Weight | 74,600 lbs |
| Maximum Landing Gross Weight | 66,000 lbs |
| Payload With Max Fuel | 2,719 lbs |
| Maximum Usable Fuel Capacity | 29,281 lbs |
Engines
| Left | |
| Description | TAY 611-8C |
| Total Hours Since New | 4,194.8 |
| Total Cycles Since New | 1,746 |
| Program | Rolls Royce Corporate Care |
| Right | |
| Description | TAY 611-8C |
| Total Hours Since New | 4,194.8 |
| Total Cycles Since New | 1,746 |
| Program | Rolls Royce Corporate Care |
| Auxillary Power Unit | |
| Make Model | Honeywell GTCP36-150 |
| APU Program | Honeywell MSP |
| Hours | 3,855 |
Cockpit
& Avionics
- Honeywell Primus Epic PlaneView™
- Honeywell / Kollsman VGS Visual Guidance System (1)
- Honeywell DU-1310 Flat Panel Display Units (4)
- Honeywell GP-500 Flight Guidance System (1)
- Honeywell MAU-913 Modular Avionics Units (3)
- Honeywell MC-850 Multifunction Control Display Units (3)
- Honeywell AZ-200 Air Data Modules (3)
- Honeywell WU-880 Weather Radar (1)
- Honeywell RT-300 Radio Altimeters (2)
- Honeywell LASEREF V Micro Inertial Reference Units (3)
- Honeywell AV-900 Audio Panels (3)
- L3 CVR Cockpit Voice Recorder (1)
- Honeywell RT-951 (TCAS 7.1) Traffic Collision Avoidance System (1)
- Goodrich GH-3100 Standby Attitude / Airspeed / Altitude Indicator (1)
- Honeywell MCS 7000 SATCOM (1)
- Mason Cursor Control Devices (2)
- MagnaStar ARTU Radio Telecommunication Unit (1)
- MagnaStar D/LNA Duplexer / Low Noise Amplifier (1)
- ARINC SELCAL
Additional
Equipment
- Enhanced Navigation including CPDLC / ADS-B Out / FANS 1A
- Synthetic Vision
- Satcom Direct Router and Cabin Services
- Securaplane 500 with 3 external cameras
- PlaneView™ MOS software upgrade
- 220V/50 Hz and 115V/60 Hz outlets throughout Cabin, Galley and Lavatory
- Enhanced Soundproofing
- 20-inch LCD monitor in forward cabin bulkhead
- 20-inch LCD monitor above credenza
- 17-inch LCD monitor aft cabin bulkhead
- Six 7-inch LCD personal (seat) monitors)
- Two multi region DVD players
- Wireless LAN System
- Airshow 4000
Range & Performance
Departure Airport
Exterior
| Base Paint Color | Matterhorn White |
| Stripe Color | Metallic Blue Á Silver Stripes |
| Last Painted Date | June 2016 |
