Stanton & Partners Aviation
2008

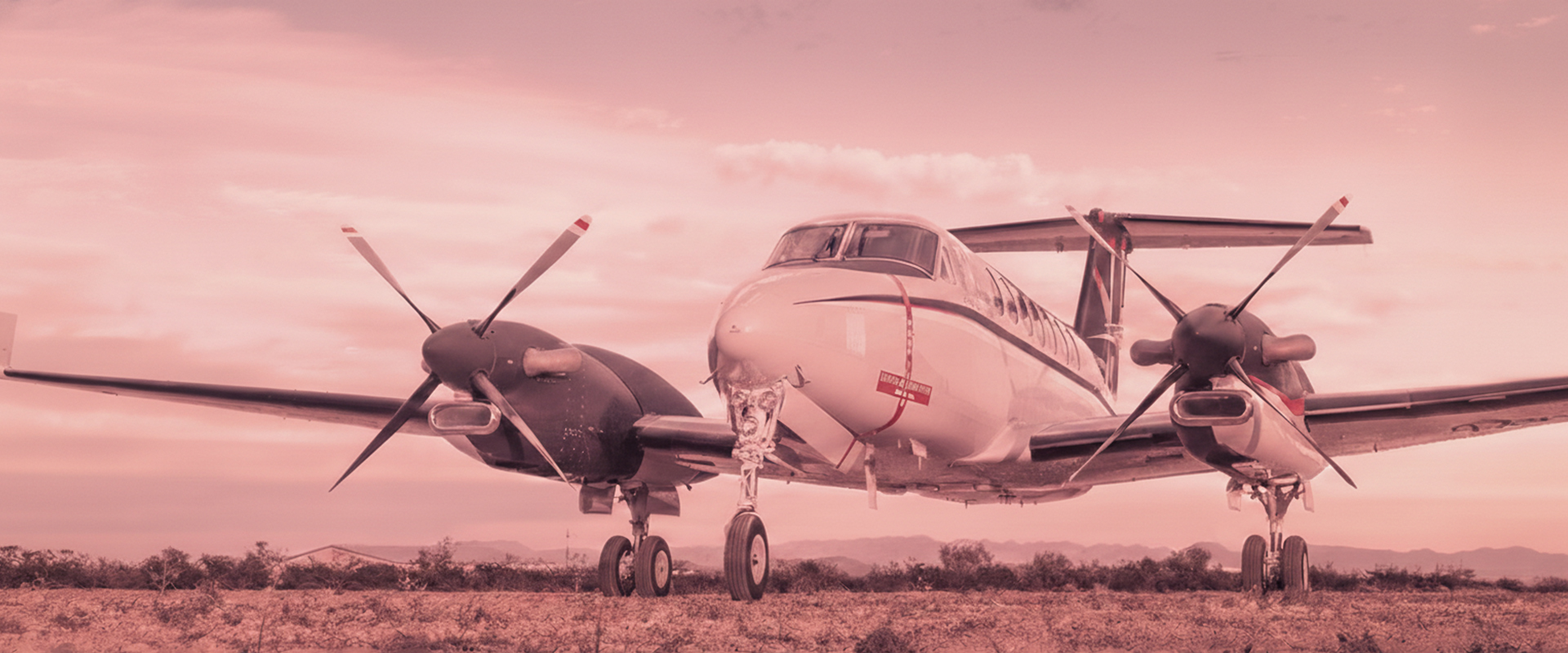

King Air 350ER
SN 599 | 5H-SPA
Highlights
| VERY LOW AIRFRAME HOURS FOR A 2008 VINTAGE | ENGINE PARAMETER RECORDING SYSTEM |
| FULL IN-FLIGHT ENTERTAINMENT (IFE) SYSTEM - DVD/MOVIES/MUSIC | PROPELLERS OVERHAULED MAY AND AUG 2024 RESPECTIVELY |
| FDR/CVR AND ELT INSTALLED | 8 PASSENGERS |
Cabin
8
4

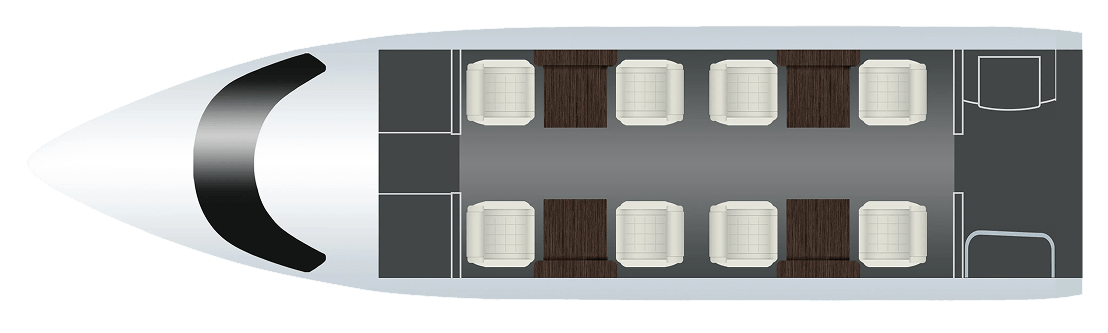

Cabin Description
| Executive Seating Capacity | Eight (8) passengers |
| Galley Location | Forward Galley |
| Lavatory Locations | Aft Lavatory |
| Interior Age Since New/Refurb | Original |
| Cabin Zones | Two (2) |
| Forward Cabin | Four (4) Single Place Club Seats |
| Aft Cabin | Four (4) Single Place Club Seats |
| Interior Finishes | Brown Wood Veneer and Brown Leather Seating |
Airframe
| Total Time Since New | 1,396.95 Hours |
| Total landings | 1,463 |
| Weight | |
| Basic Empty Weight | 10,567 Lbs. |
| Basic Operating Weight | 10,400 Lbs. |
| Maximum Ramp Weight | 16,600 Lbs. |
| Maximum Takeoff Gross Weight | 16,500 Lbs. |
| Maximum Landing Gross Weight | 15,675 Lbs. |
| Maximum Zero Fuel Weight | 13,000 Lbs. |
| Payload With Max Fuel | 2,600 Lbs. |
| Maximum Usable Fuel Capacity | 5,192 Lbs. |
Engines
| Left | |
| Description | Pratt & Whitney PT6A-60A |
| Total Hours Since New | 1,372.05 Hours |
| Total Cycles Since New | 1,432 |
| Right | |
| Description | Pratt & Whitney PT6A-60A |
| Total Hours Since New | 1,353.30 Hours |
| Total Cycles Since New | 1,415 |
| PROPELLER LEFT | |
| Make Model | HC-B4MP-3C |
| Total Time Since New | 1,397 hours |
| PROPELLER RIGHT | |
| Make Model | HC-B4MP-3C |
| Total Time Since New | 1,153.5 hours |
Avionics
- 1 Audio Panel Collins Proline 21 Dual Audio System
- 2 VHF Communication Collins Proline 21
- 2 VOR Navigation/lLS/MB Collins Proline 21
- 2 ADF Collins Proline 21
- 2 DME Collins Proline 21
- 2 Transponder Collins Proline 21
- 2 Radar Collins Proline 21
- 1 GPS Collins Proline 21
- 1 ELT Kannad 406AF
- 1 FDR L-3 Communications FA2300
- 1 CVR L-3 Communications FA2300
- 1 TCAS Collins T2CAS (TCAS II and EGPWS)
- 1 Auto Pilot Collins APS-Proline 21
Additional Features
- Engine Parameter Recording System
- Fuel Quantity in LBS
- Individual Air Outlets
- Individual Reading Lights
- Window Blinds
- Passenger Address System
- Full In-flight Entertainrnent (IFE) System - DVD/Movies/Music
- Individual IFE Headsets
Maintenance
| INSPECTION | LAST COMPLETED | NEXT DUE / REMAINING HOURS |
| Phase 1 thru 4 Inspections | 31 May 2023 | 31 May 2025 |
| 200 Hour lubrication | 1354.5 hours | 157.5 hours remaining |
| 400 Hour lubrication | 1354.5 hours | 357.5 hours remaining |
| 3-Year Propeller Inspection (LH) | 27 Aug 2024 | 27 Aug 2027 |
| 3-Year Propeller Inspection (LH) | 10 May 2024 | 10 May 2027 |
| LH Propeller Overhaul | 27 Aug 2024 | 27 Aug 2029 |
| RH Propeller Overhaul | 10 May 2024 | 10 May 2029 |
| LH and RH Engines HSI (1800 Hours) | NA | 403.1 hours remaining |
| LH and RH Engines Overhaul (3600 Hours) | NA | 2203.1 hours remaining |
Range & Performance
Departure Airport
Exterior
| Base Paint Color | White |
| Stripe Color | Black |
| Last Painted Date | Original |
