Highlights

NO DAMAGE HISTORY WAAS AND ADS-B OUT CAPABLE
HONEYWELL APEX VFR/IFR SUITE LOW AIRFRAME & ENGINE HOURS
PHASE 2A MODIFICATION COMPLETED ON THE HONEYWELL APEX SYSTEM 17 PASSENGERS + 2 CREW + 1 ENGINEER
WEATHER RADAR

Cabin

18

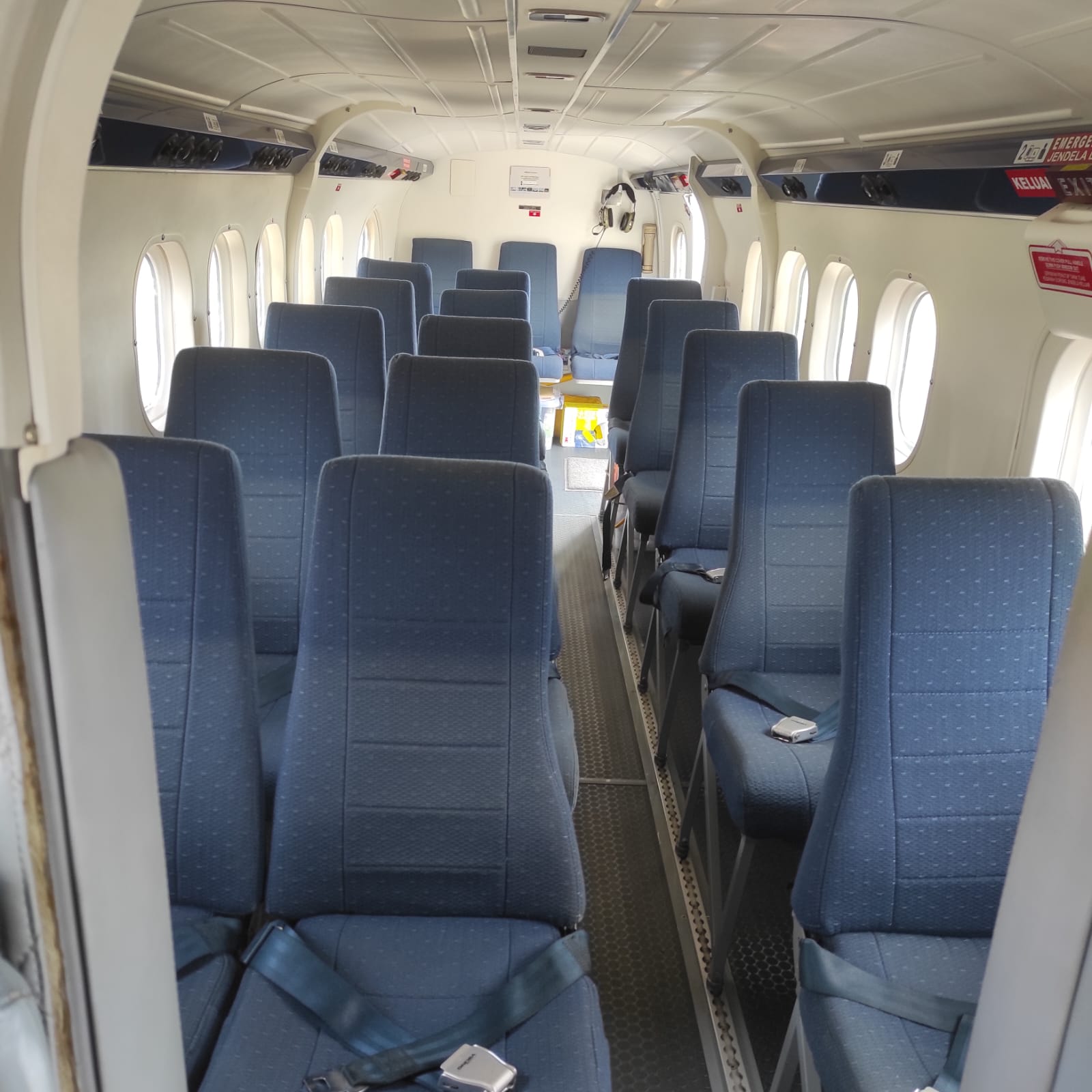

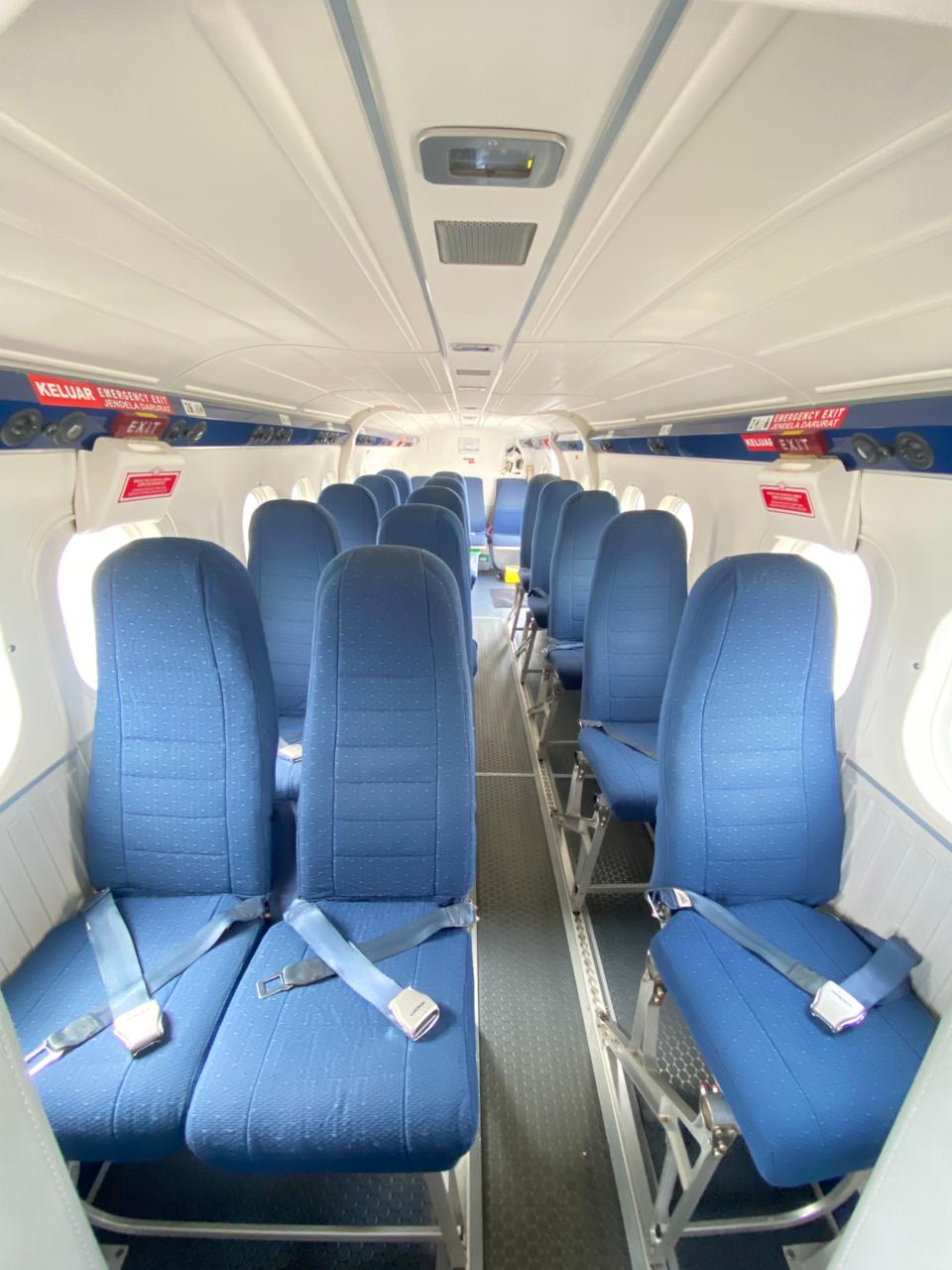

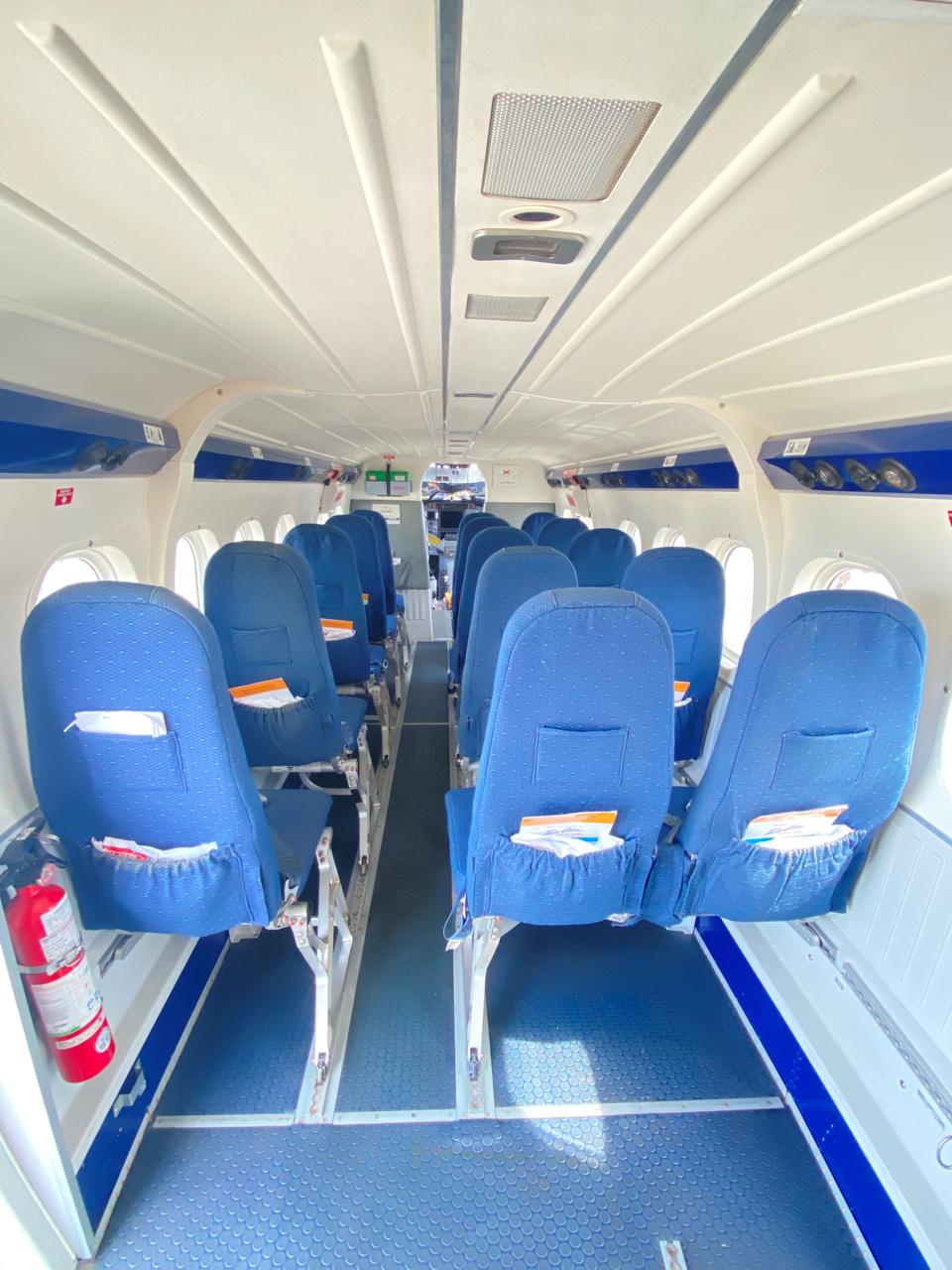

Cabin Description

Seating Capacity Eighteen (18)
Interior Age Since New/Refurb Original
Cabin Zones One (1)
Main Cabin Eighteen (18) Seats Facing Forward

Airframe

Entry into Service 2014
Total Time Since New 1,641.9 Hours
Total landings 2,340
Weight
Basic Empty Weight 7,467 Lbs.
Basic Operating Weight 7,104 Lbs.
Maximum Ramp Weight12,500 Lbs.
Maximum Takeoff Gross Weight 5,670 Lbs.
Maximum Landing Gross Weight12,300 Lbs.
Maximum Zero Fuel Weight 11,165 Lbs.
Payload With Max Fuel 4,061 Lbs.
Maximum Usable Fuel Capacity5,032.95 Lbs.

Engines

Left
Description Pratt & Whitney PT6A-34
Total Hours Since New 1,641.9 Hours
Total Cycles Since New 2,340
Right
Description Pratt & Whitney PT6A-34
Total Hours Since New 1,641.9 Hours
Total Cycles Since New 2,340
Propeller
Description HC-B3TN-3D
Time between overhaul 3,000 Hours or 5 Years

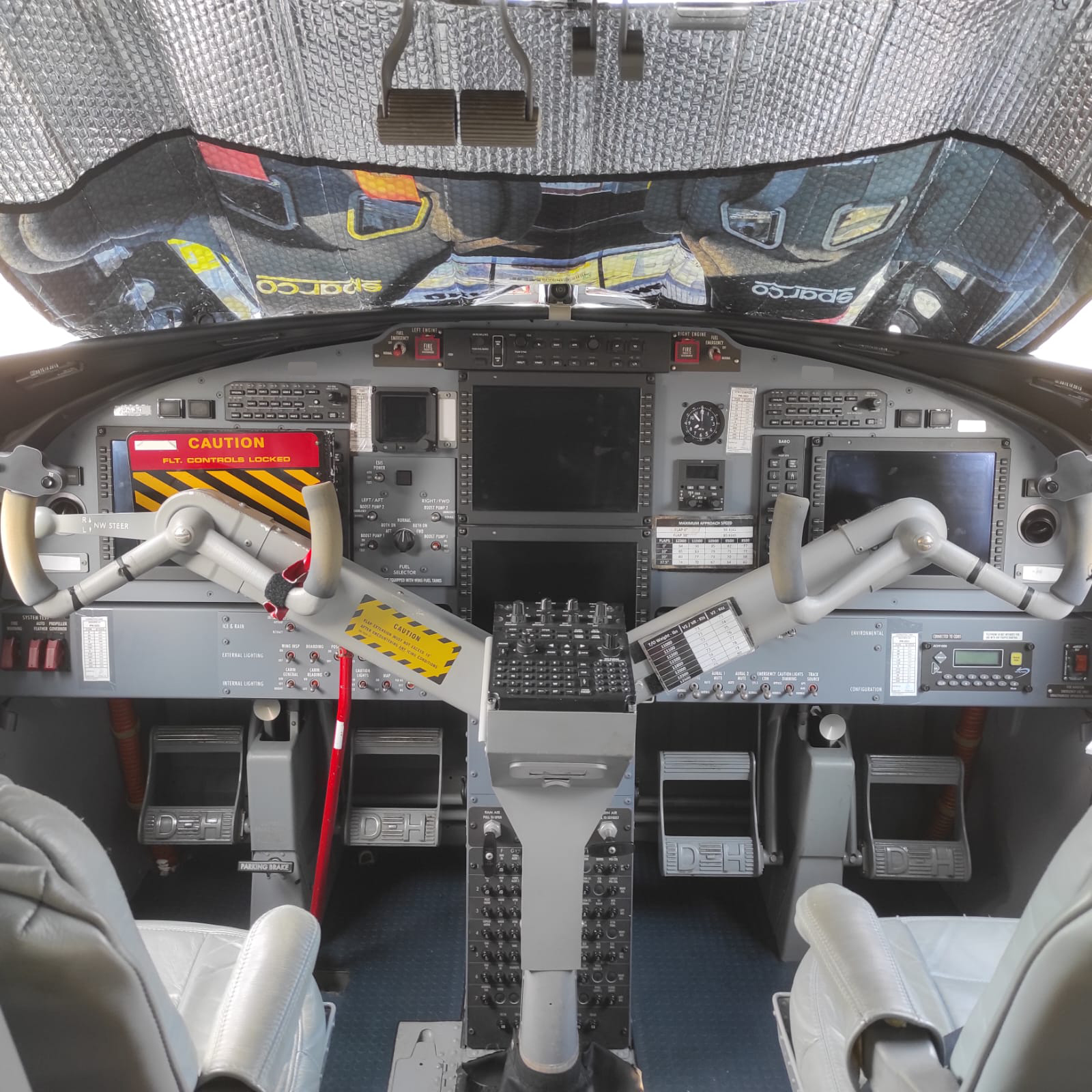

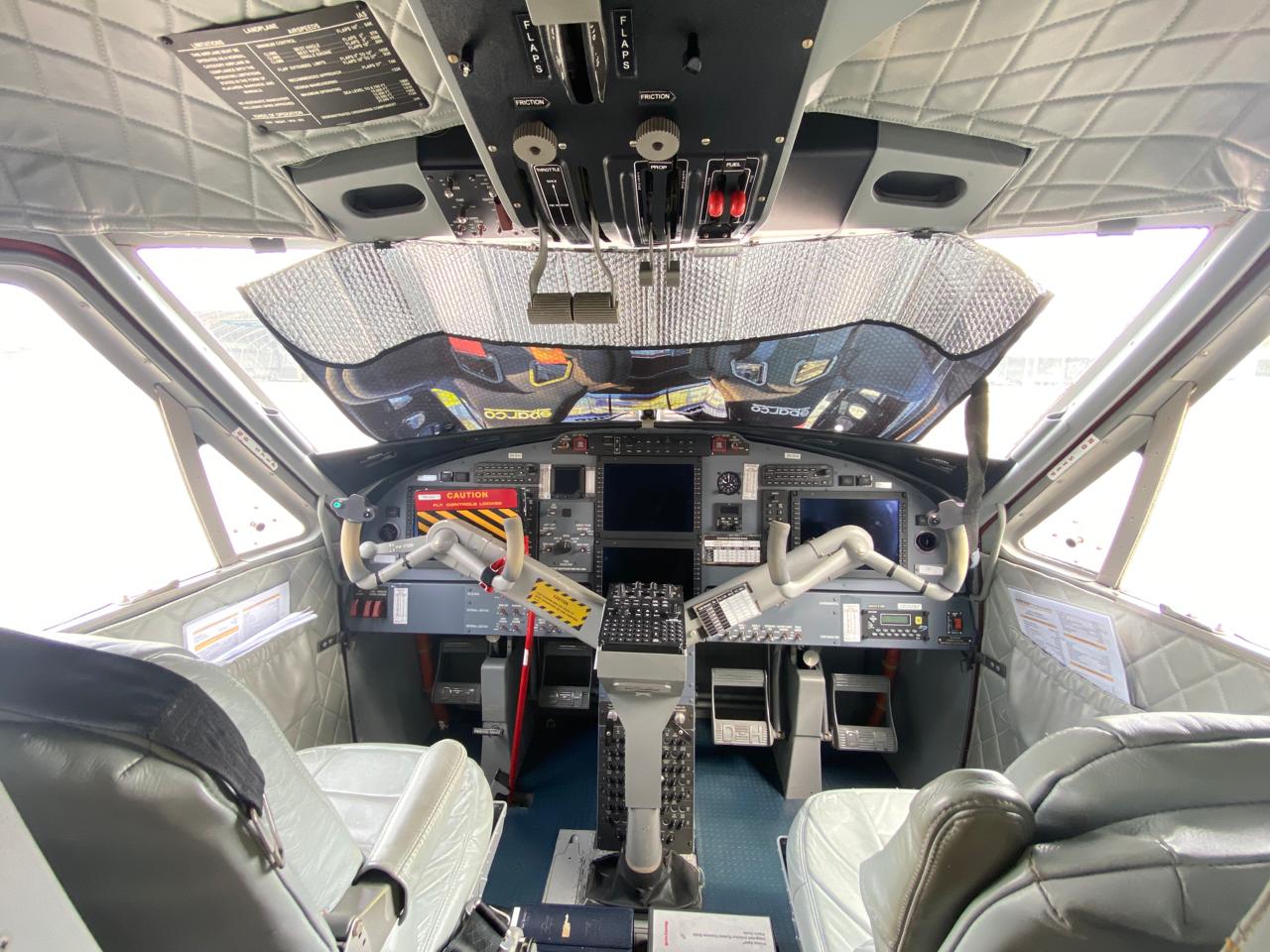

Equipments

  • Phase 2A completed on the Honeywell Apex system
  • Honeywell Apex VFR Avionics suite
  • Honeywell Apex Commercial IFR package
  • Dual GPS Installation WAAS
  • Dual Channel ADAHRS system
  • Dual VOR/ILS
  • Single Glideslope (fed to both VHF nav)
  • Single ADF
  • ART 2000 Weather Radar (stabilized, horizontal, and vertical scan)
  • Dual Mode S divert (EHS) transponders with ADS-B out
  • 406 MHz ELT with navigation interface and remote switch Dual DME
  • L3 Standby Instrument with battery backup and full FMS support
  • Two 12-volt convenience outlets in flight compartment
  • Automatic Power Calculation
  • Dual Audio Panels
  • Cabin Address System
  • Vertical Depicition of Terrain on route ahead
  • Mk 6 Class A TAWS (includes high resolution mapping on MFD)
  • Radar Altimeter (required to support TAWS)
  • TCAS 1
  • Cockpit Voice Recorder (CVR)
  • Flight Data Recorder (FDR)
  • HF Radio
  • Second ADF

Range & Performance

Departure Airport

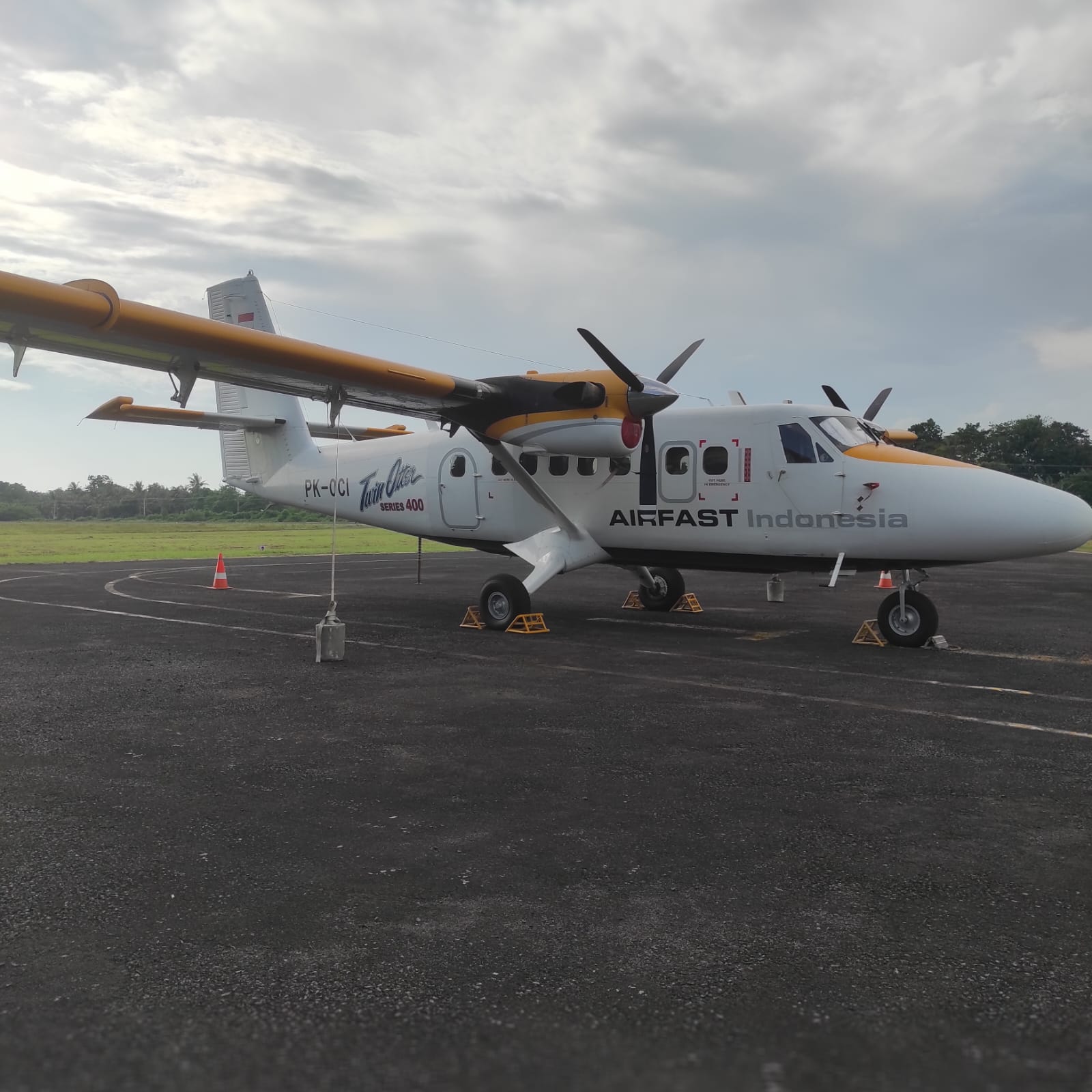

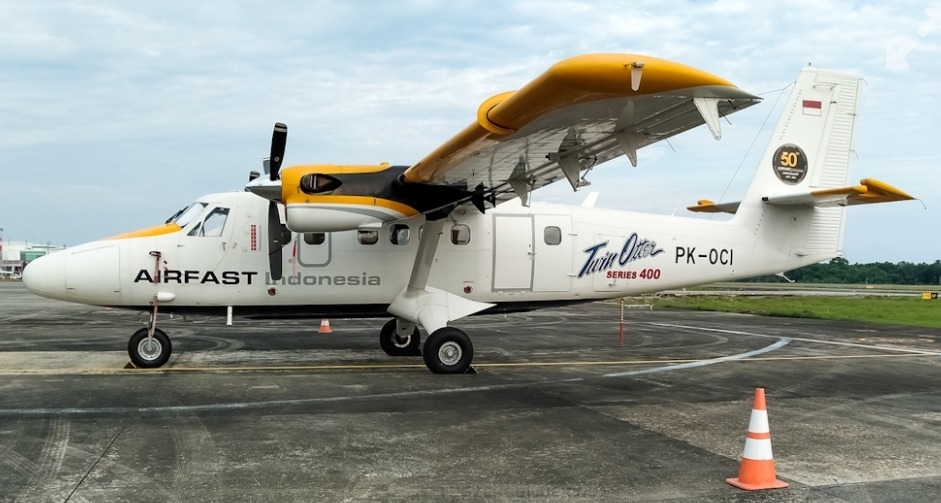

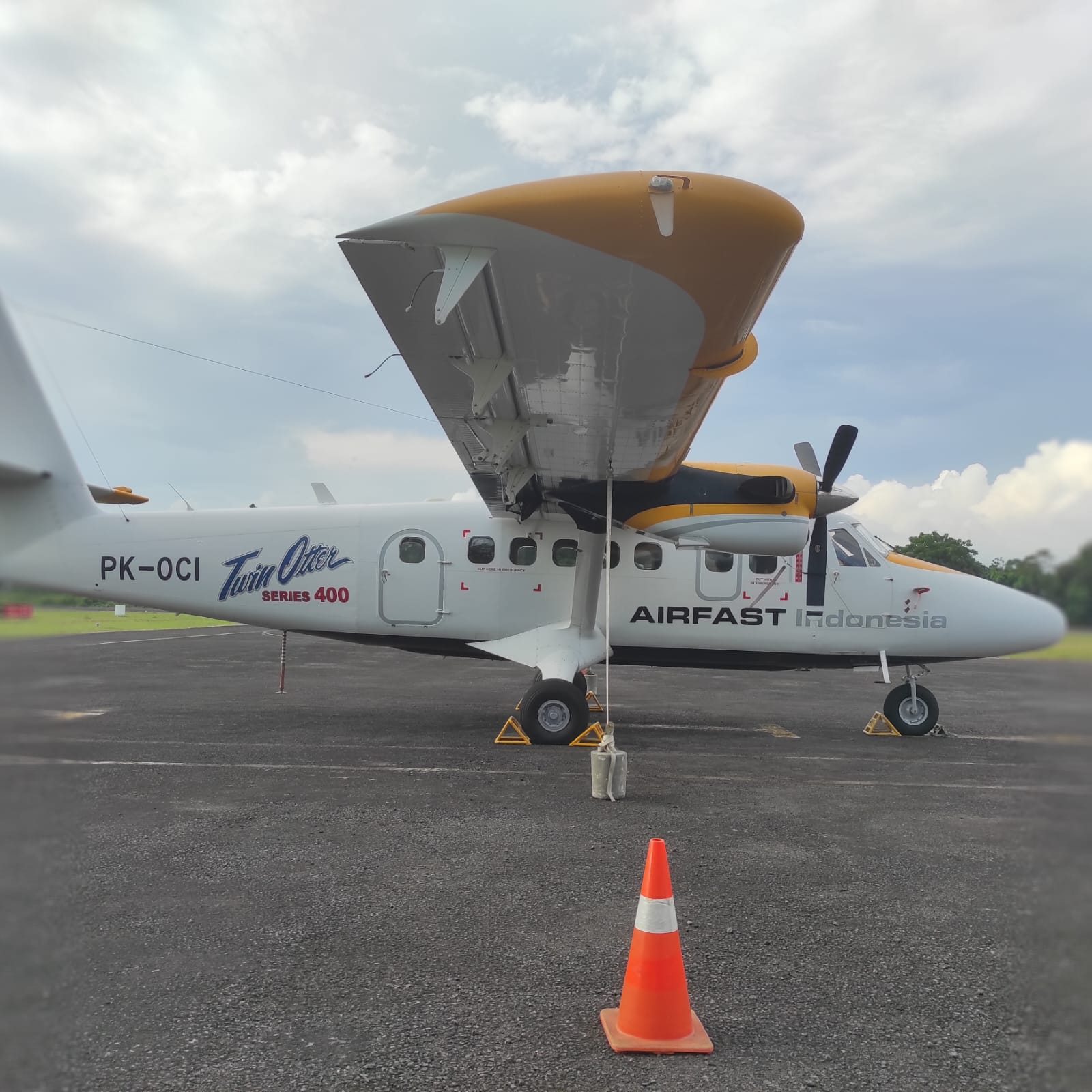

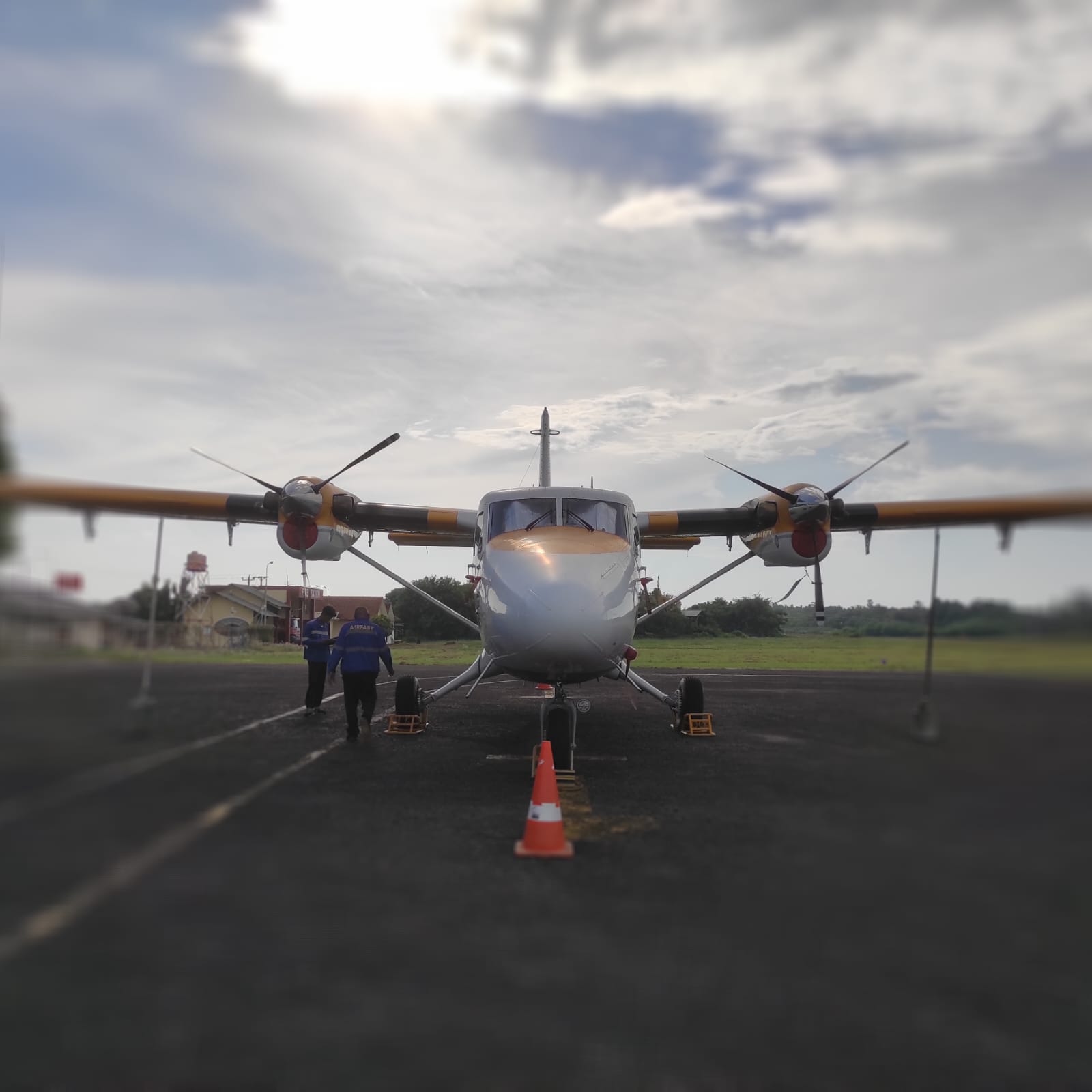

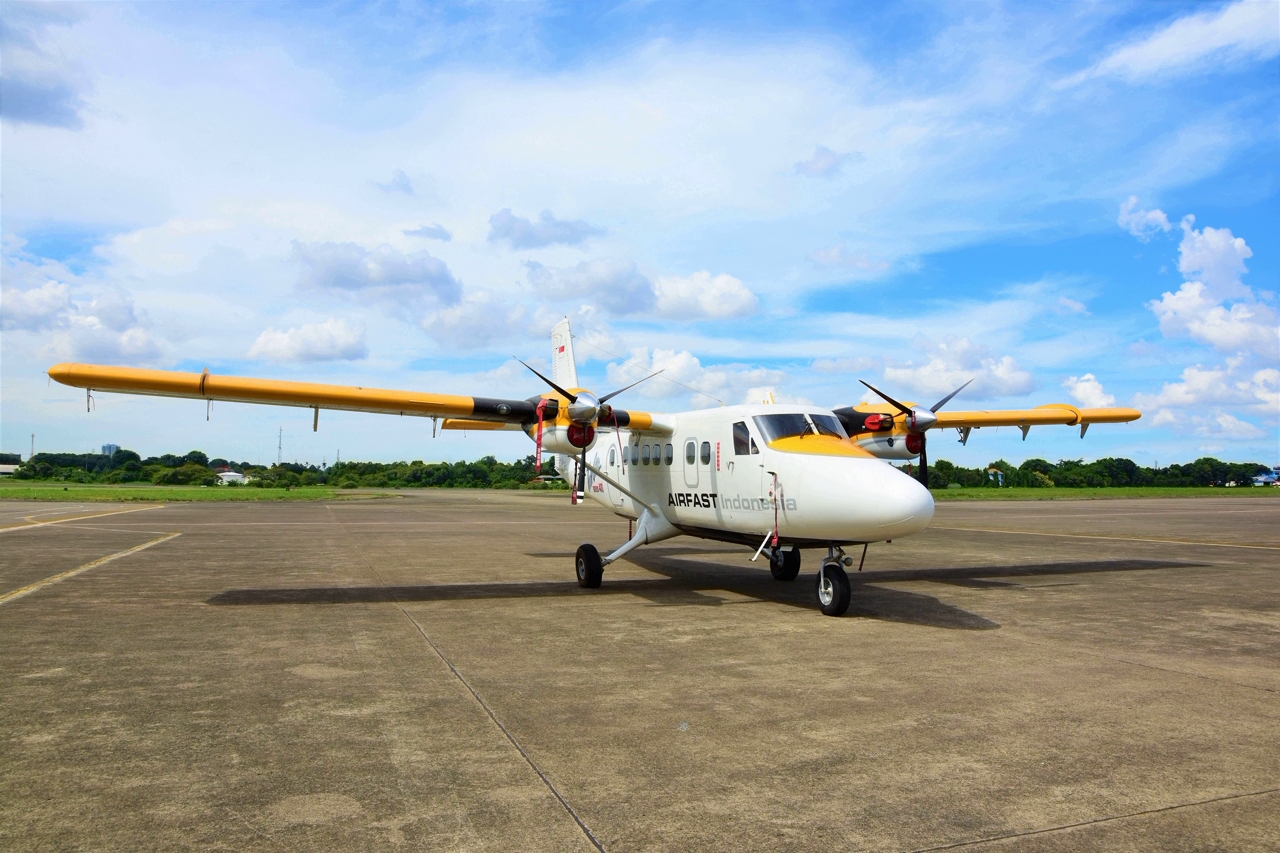

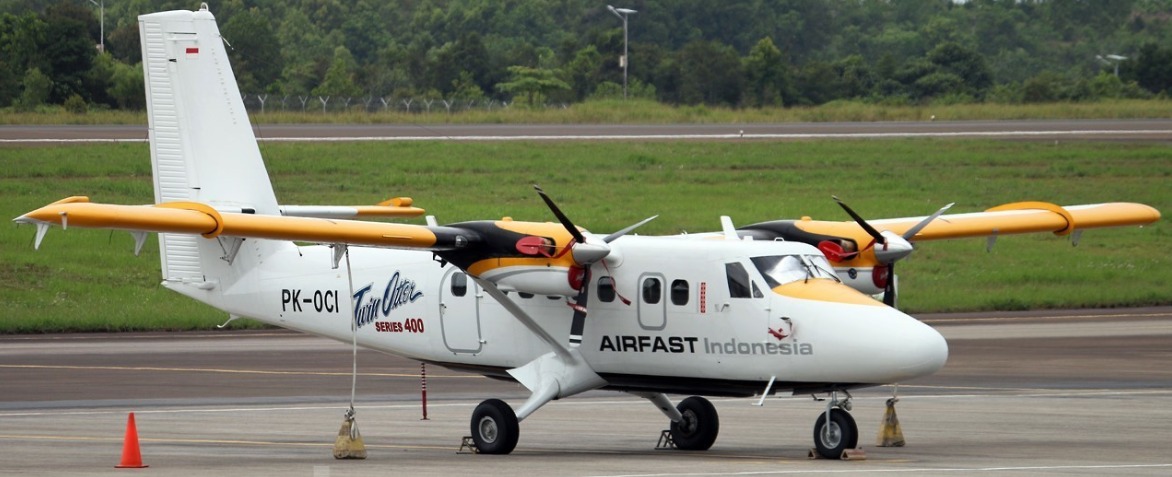

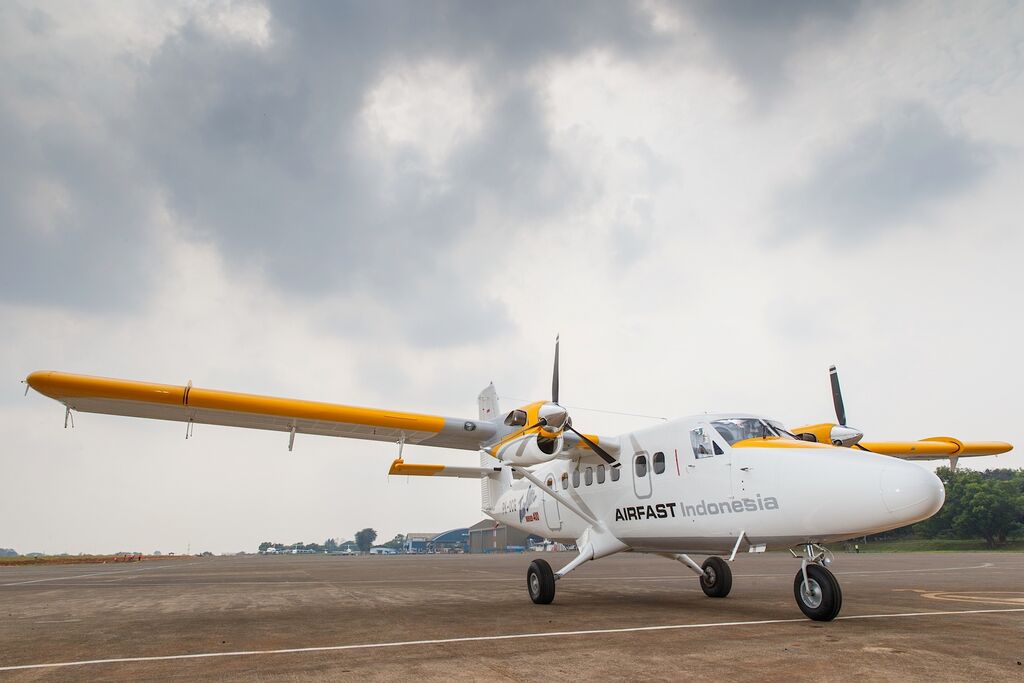

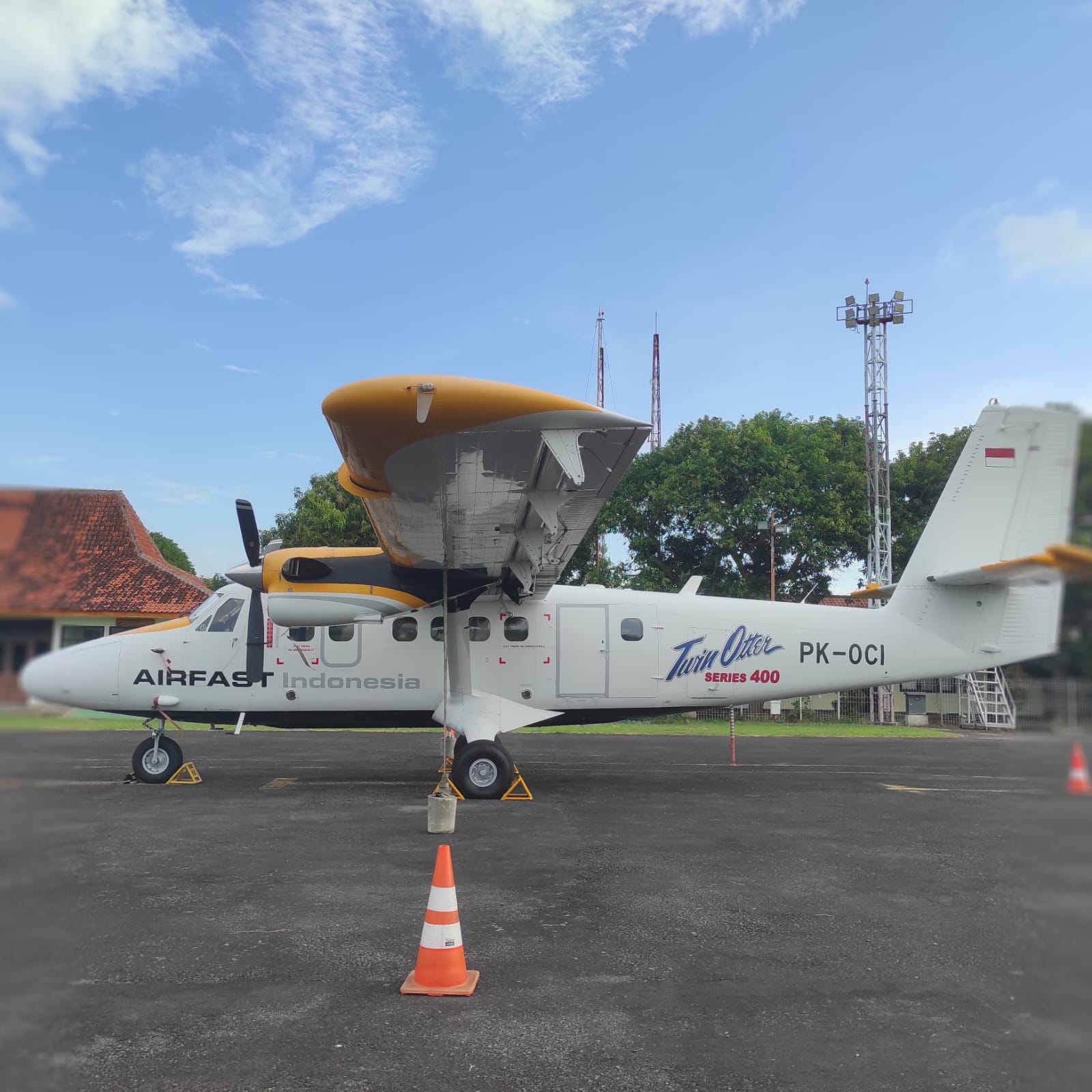

Exterior

Base Paint Color White and Yellow
Last Painted Date Original
