Stanton & Partners Aviation
2016
Bombardier Global 6000
SN: 9661 | A7-TAA
Highlights
| AIRFRAME & APU ENROLLED ON PROGRAMS | ADS-B OUT | FANS 1/A + | CPDLC |
| ATG GOGO WIFI | HD-710 & SWIFT BROADBAND | WITH FWD CREW REST |
| FRESH 15 & 30 MONTH INSPECTIONS IN OCT 2023 | 14 PASSENGERS WITH FORWARD GALLEY |

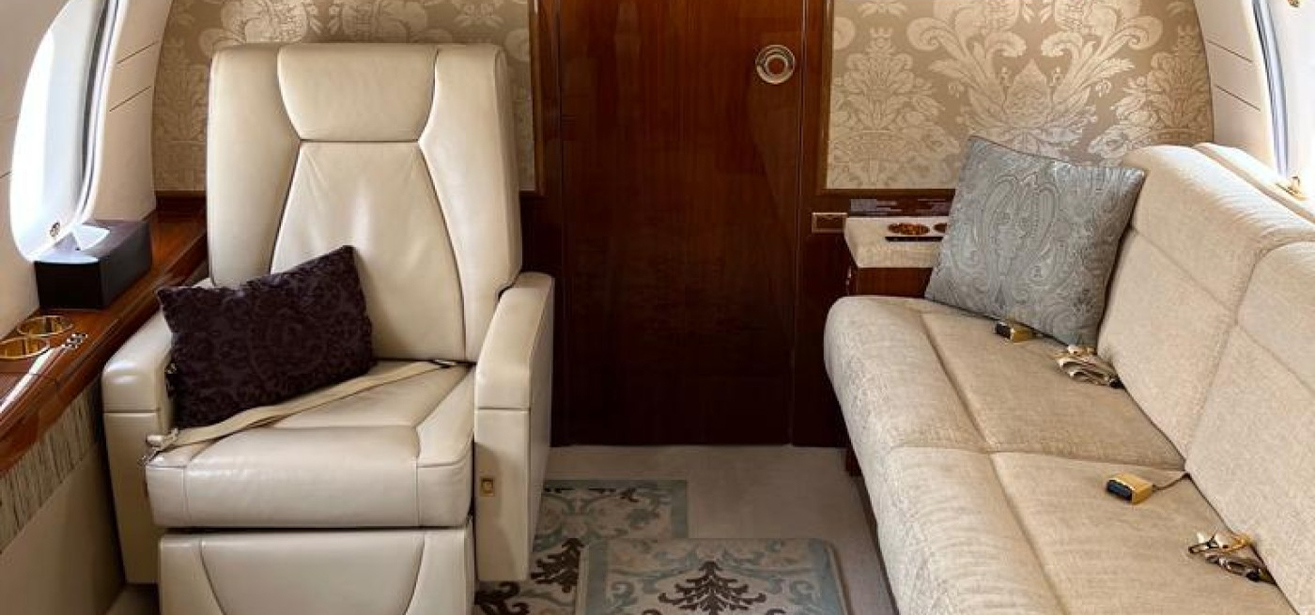

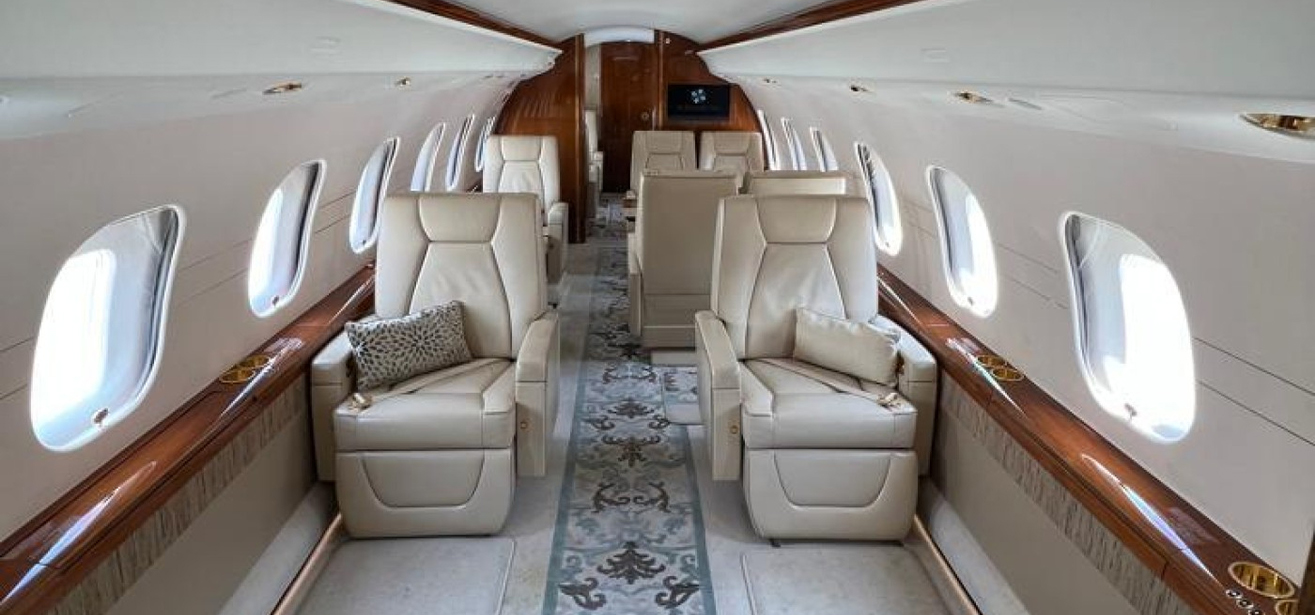

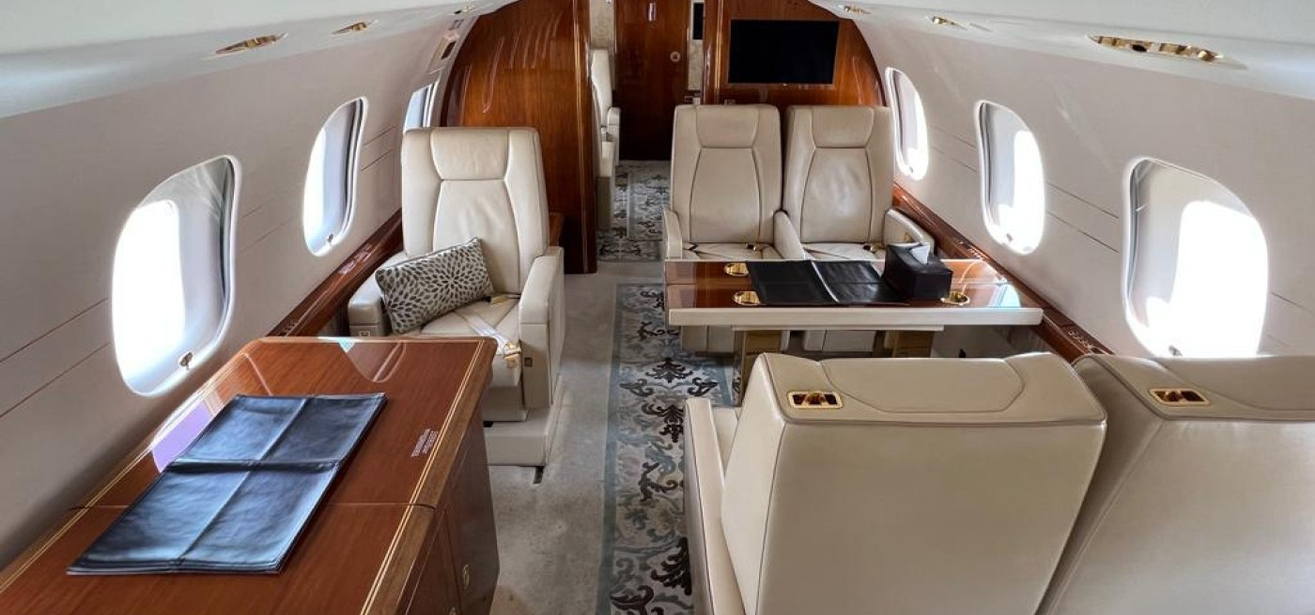

Cabin
13
06

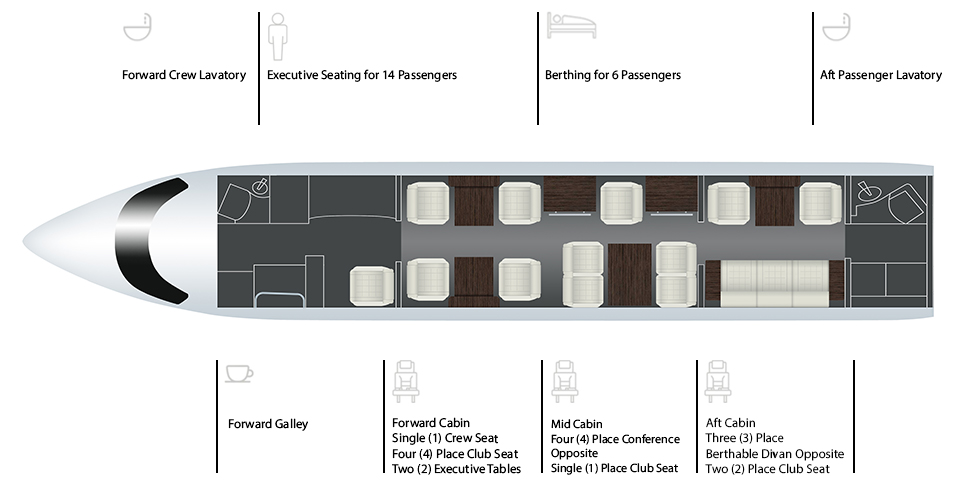

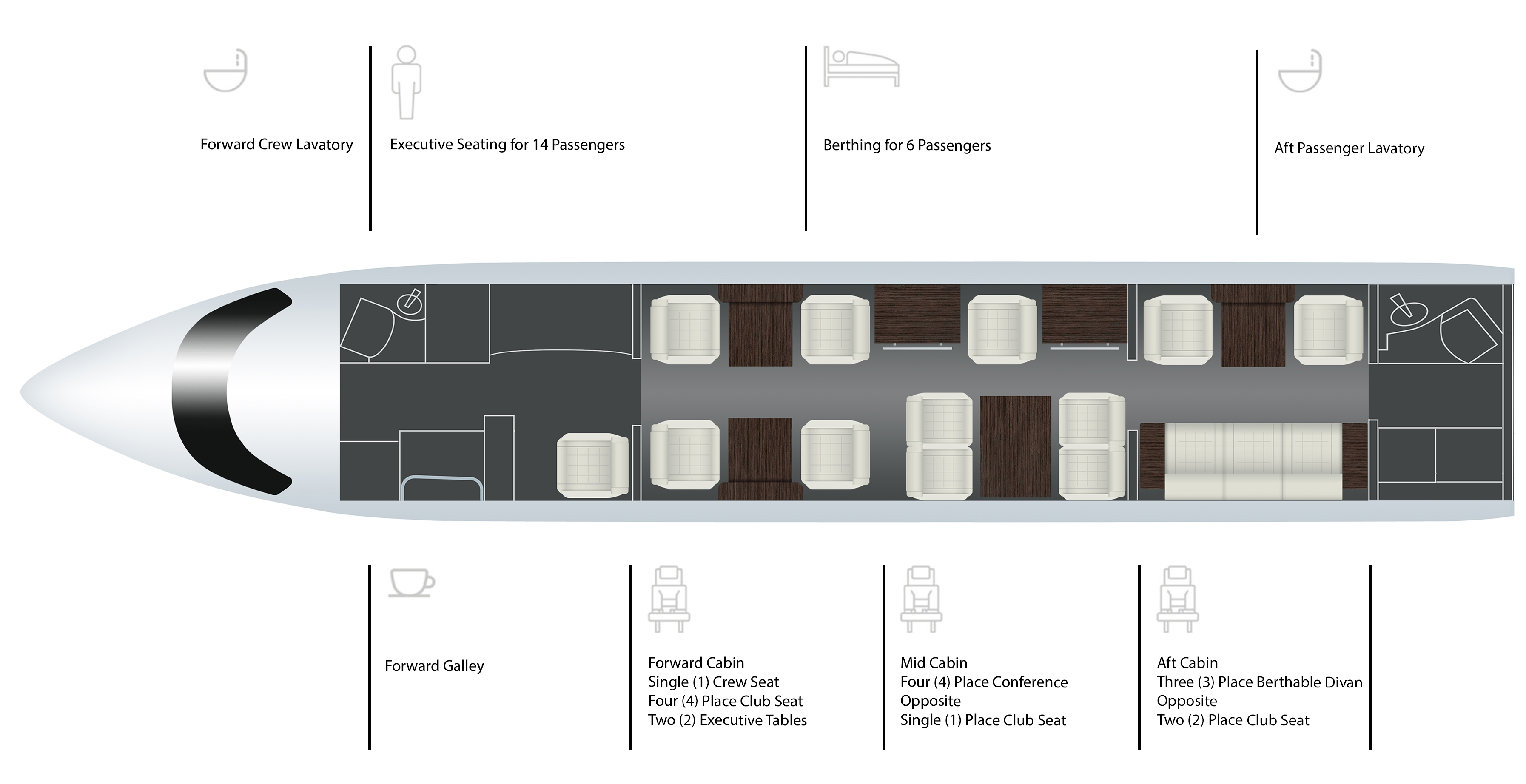

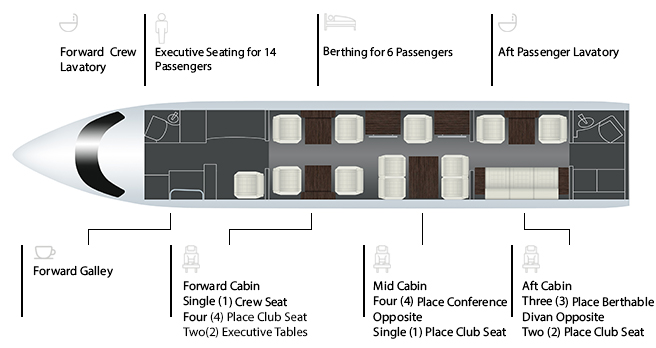

Cabin Description
| Executive Seating Capacity | Fourteen (14) |
| Cabin Berthing Capacity | Six (6) |
| Galley Location | Forward Galley |
| Galley Equipment | High-temp oven, microwave, espresso machine, chiller area, and ice drawer |
| Lavatory Location/s | Forward crew lavatory and aft passenger lavatory |
| Interior Age Since New/Refurb | Original |
| Connectivity | ATG GoGo | Swift Broadband |
| Charging | USB and HDMI Ports |
| Cabin Zones | Three (3) |
| Forward Cabin | Four (4) single place club seats and two executive tables |
| Mid Cabin | Four (4) place conference group opposite single (1) place club seat |
| Aft Cabin | Three (3) place berthable divan opposite two (2) place club seat |
| Crew Rest | Yes |
| Interior Finishes - Wood Veneer | Light |
| Interior Finishes – Leather | Beige leather seating |
Airframe
| Entry into Service | 2016 |
| Total Time Since New | 2,253.50 Hours |
| Total landings | 526 |
| Maintenance Tracking | CAMP |
| Program | SmartParts |
| Weight | |
| Basic Empty Weight | 51,194 Lbs. |
| Basic Operating Weight | 52,230 Lbs. |
| Maximum Ramp Weight | 99,750 Lbs. |
| Maximum Takeoff Gross Weight | 99,500 Lbs. |
| Maximum Landing Gross Weight | 78,600 Lbs. |
| Maximum Zero Fuel Weight | 58,000 Lbs |
| Payload With Max Fuel | 2,470 Lbs. |
| Maximum Usable Fuel Capacity | 45,050 Lbs. |
Engines
| Left | |
| Description | Rolls-Royce BR700-710A2-20 |
| Total Hours Since New | 2,253.50 Hours |
| Total Cycles Since New | 532 |
| Right | |
| Description | Rolls-Royce BR700-710A2-20 |
| Total Hours Since New | 2,253.50 Hours |
| Total Cycles Since New | 532 |
| Auxillary Power Unit | |
| Make Model | Allied Signal RE-220(GX) |
| Serial Number | P-789 |
| Total Time Since New | 1,731 Hours |
| Total Cycle Since New | 1,445 |
| Program | MSP |
Cockpit
& Avionics
- Four AFD-6520 15.1-inch LCD Adaptive Flight Displays
- Triple Honeywell Inertial Reference Units
- Triple Collins Air Data Computers
- Triple FMS w/ Activation of FMS Data WAAS/ LPV functions
- Dual Collins GPS-4000S w/ WAAS/LPV
- Collins RTA-4118 Multiscan Weather Radar
- Collins TDR-94D Transponder w/ EHS and ADS-B Out
- Triple Collins VHF-4000 COMM Radios w/ Datalink
- Dual Collins Radio Control Unit RIU-4110 w/ Selcal and Selcal/Datalink
- Dual Collins NAV-4000 NAV Radios with ADF
- Dual Collins DME-4000 Distance Measuring Equipment
- Dual Collins ALT-4000 Radio Altimeters
- Dual Collins HF-9031A HF Communication System
- Collins TSS-4100 TCAS/Transponder w/ Chg 7.1
- Collins TPM-6000 TAWS
- Lightning Detection System
- FA2100 Flight Data Recorder
- FA2100 Cockpit Voice Recorder w/ RIPS
- Quick Access Recorder
Additional
Equipment
- MNPS, PRNAV, RNP 0.3AR/1/2/4/10, RVSM Capable
- FANS 1/A, CPDLC
- Artex B406-4 ELT
- EVS, Enhanced Vision System
- Head-up Display System w/ SVS
- Surface Management System Takeoff and Landing Awareness Function
- Datalink Geographical Weather
- Securaplane System
- Flight Compartment Printer
- Collins SAT-2200 SATCOM System
- Aspire 100 Dual Channel Iridium Phone System
- Airshow
- 24" Fwd and Aft Bulkhead HD Monitors
- Two Dual Disc Blu-ray DVD players
- USB and HDMI Ports w/ Media Streamer
- Espresso Maker
- High-Temp Oven
- Microwave Oven
- 115 VAC Outlets in Cockpit, Galley, Cabin and Lav
Range & Performance
Departure Airport
Exterior
| Base Paint Color | White With Gold & Teal Stripes |
| Last Painted Date | Original |
